The T40 walkie tugger makes cart movement safe and easy.

T40

T40

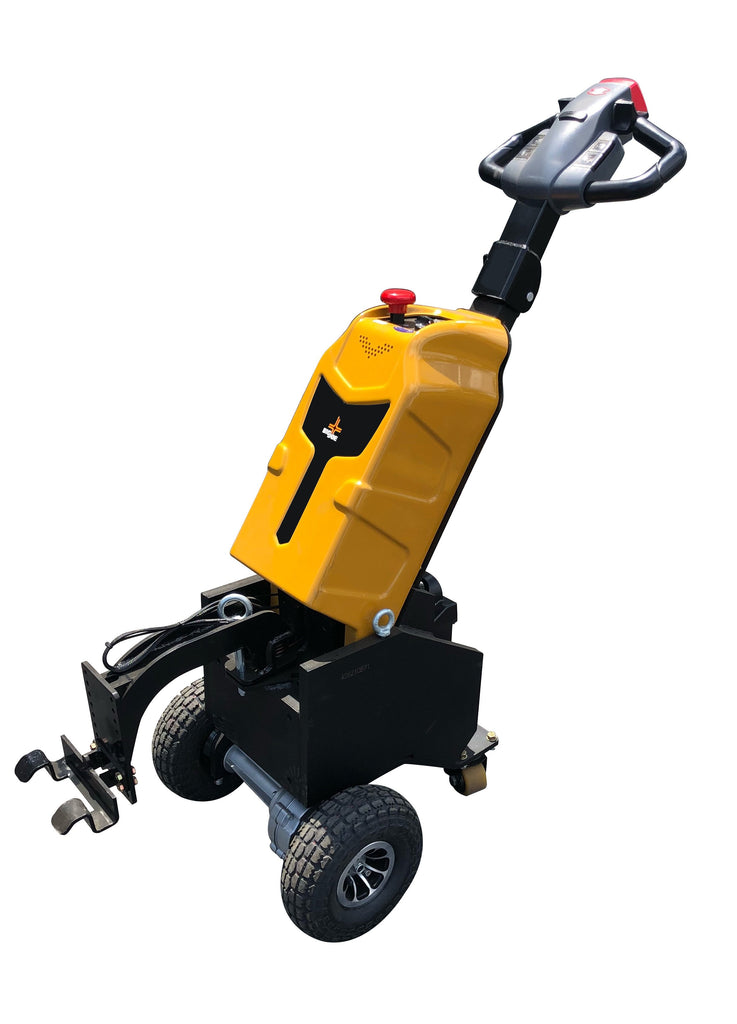

Walkie Tugger

Our 4,000lb capacity walkie tugger can eliminate operator strain caused by manually pulling carts long distances. Variable travel is provided for both forward and reverse and the unit comes with both a frame grab and a standard pin connection, The 180 degree articulating tow arm can be locked out with a drift pin for improved control as needed.

The T40 Features:

• 24volt DC drive motor and controller

• Electronic motor braking provides stopping force when not under power

• Ergonomic handle with 3 positions, safety reversing switch and horn

• 20AH polycase batteries with external 110VAC charger

• Battery discharge indicator, emergency power disconnect, and key switch

The T40 Specifications:

• Vehicle TypeMotorized pedestrian tugger
• Maximum Capacity4,000lbs
• Power24 volt electric with DC controller
• Vehicle Dimensions54.1" OAL, 20.5" OAW
• Turning Radius36"
• Travel Speed3 mph empty, 2 mph loaded
• Battery TypePolycase maintenance free
• Battery Capacity20AH
• ChargerExternal 110VAC plug-in

Videos and Case Studies:



Big Joe T40 Walkie Tugger from Bill Pedriana on Vimeo.
